MOBILE CRUSHERS

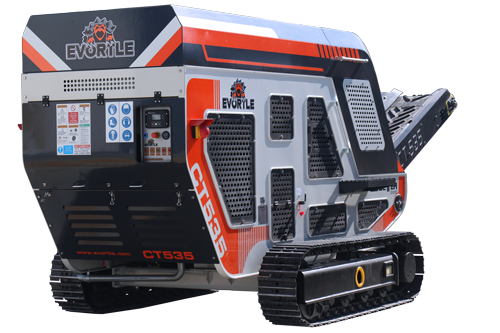

CT 535

CT 535 mobile crusher is a high-performance, portable, and powerful machine solution.

CT 535

PRODUCT FEATURES

CT 535 jaw crusher gives a higher level of productivity, while maximizing comfortable use in a cost-efficient way for your light-duty needs, mainly for demolition, construction, and recycling business. CT 535 is able to crush coal, rubble, concrete, tile, brick, briquette, stone, ores, marble, etc. Moving on a track system, it is suitable to work in all harsh conditions and terrains.

Being fully remote controlled and easy to transport, CT 535 allows for fast and simple set-up and operating by a single user. Using the wireless remote control, move the crusher to the working field, select the desired output size, push the start button for running the crusher and conveyor system and start crushing in less than 5 minutes.

CT 535 comes complete with a diesel engine. The self-contained machine can be powered from that high-performing hydraulic drive. Jaw crusher can be adjusted hydraulically, so, changing the product size takes less than one minute.

CT 535 is small enough to fit inside a container to decrease transport costs.

CT 535 is an optimal solution for your crushing tasks to maximize your return on investment

Net Engine PowerHatz 4H50TIC | Power: 28.7 to 55 kW (74 HP)
Inlet Opening500 x 350 mm (1' 5.7" x 1' 1.8")
Operating Weight6,500 kg
Transport DimensionsHeight 2200 mm (7' 2.6") | Width 1900 mm (6' 3") | Length 6000 mm (19' 8")
Working DimensionsHeight 2725 mm (8' 11") | Width 2750 mm (9') | Length 7110 mm (23' 4")
