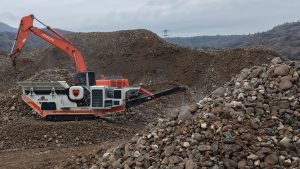

It is for you, when you need a compact crusher with a heavy-duty, which can have excellent performance when used in a various range of applications; from recycling to quarrying. It is powerful to work in coal, limestone, gypsum, silica, flint, dolomite, and gravel, as well as tile, concrete, and clinker.
Having a by-pass belt for the pre-crushing screen, its durability and sustainability are longer which decreases its maintenance costs. It is small enough to fit inside a container; an impressive specification that lets CT 740 one step in front among its counterparts.
CT 740 comes complete with a diesel engine and track system. The self-contained machine can be powered from that high-performing hydraulic drive. Jaw crusher can be adjusted hydraulically, so, changing the product size takes less than one minute.
Its quick set-up times, ease of transport, and ease of use are its advantages to be distinguished among mobile crushers.
| Net Engine Power | 100 kW / 105 kW (134 HP / 140 HP) |
| Inlet Opening | 700 x 400 mm (2’ 3.5” x 1’ 3.7”) |
| Operating Weight | 17,500 kg (38,580 lbs) |
| Transport Dimensions | Height 2550 mm (8’ 4”) | Width 2156 mm (7’ 1”) | Length 11900 mm (39’ 0”) |
| Working Dimensions | Height 2900 mm (9’ 6”) | Width 2156 mm (7’ 1”) | Length 11900 mm (39’ 0”) |
Evortle designs and manufactures high-quality mobile crushers, screeners and recycling plants engineered for reliable, high performance worldwide.
